Dual plate check valve

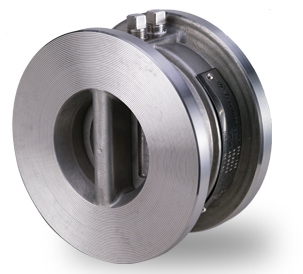

  • DVC-100
  • API594 Wafer Type Dual Plate ( Flaps ) Check Valves, Retainer type.
  • Feature：
    • * Small space available, easier installation, Quick closed to reduce water hammer situation.
    • * Cost Efficient, the cost would be less than swing type check valves, with the same functional operation.
    • * Diversity of connection types of international standards, depending on customers.
    • * Full-lining dual plate check valve is optional
    • * API594 Design or Manufacturer Standard
    • * Size Range: 1 1/2" ~ 60" ( DN40 ~ DN1500)
    • * Pressure Rating : 125#/150#/PN6/PN10/PN16/JIS 5K/JIS 10K
    • * Seat: EPDM/NBR/VITON/METAL

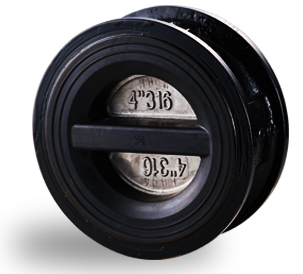

  • DVC-102
  • API594 Wafer Type Full Lining Dual Plate ( Flaps ) Check Valves.
  • Feature：
    • * Full-lining design for corrosive application.
    • *API594 Design or Manufacturer Standard.
    • * Size Range: 1 1/2" ~ 60" ( DN40 ~ DN1500)
    • * Pressure Rating: 150#/300#/600#/PN6/PN10/16/PN25/40/PN50/ JIS 5K / JIS 10K

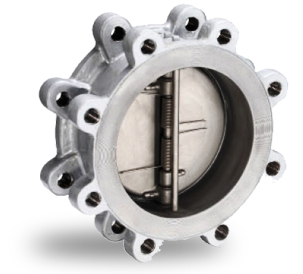

  • DVC-110
  • API594 Lug Type Dual Plate ( Flaps ) Check Valves,Retainer type.
  • Feature：
    • * Lugged thread is standard
    • *Extended series of lug type dual plate check valve : DVC-111 ; Full Lug Type:DVC-112 ; Lug Lining Type: DVC-113 : Full Lug Lining Type.
    • *API594 Design or Manufacturer Standard.
    • *Size Range: 11/2" ~ 36" ( DN40~DN900)
    • *Pressure Rating: 150#/300#/600#/ PN6/PN10/16/PN25/40/PN50/JIS 5K / JIS 10K

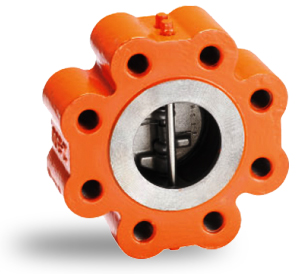

  • DVC-111
  • API594 Solid-Lug Type Dual Plate ( Flaps ) Check Valves.
  • Feature：
    • *Solid-lug design.
    • *Options: Solid Lug Lining Type ( Rubber lined ) DVC-113
    • *Size Range 11/2"~36"(DN40 ~ DN900)
    • *Pressure Rating: 150#/300#/600#/ PN6/PN10/16/PN25/40/PN50/JIS 5K / JIS 10K

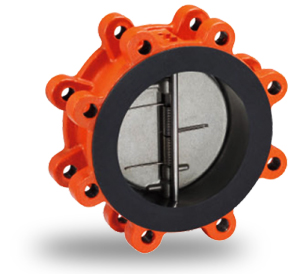

  • DVC-112
  • API594 Lug-lining Type Dual Plate ( Flaps ) Check Valves, suits for ANSI/DIN/JIS standard.Material Range: WCB/Stainless Steel / Special Alloys.
  • Feature：
    • *Full-lining design for corrosive application.
    • *Lugged thread is standard
    • *Size Range 11/2"~36"(DN40 ~ DN900)
    • *Pressure Rating: 150#/300#/600#/PN6/PN10/16/PN25/40/PN50/JIS 5K / JIS 10K

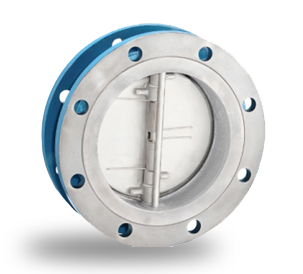

  • DVC-120
  • API594 Double-Flange Type Dual Plate ( Flaps ) Check Valves.
  • Feature：
    • *Extended series of double-flange type dual plate check valve : DVC-121 Double-Flange Full Rubber Seat Type
    • *Size Range 1 1/2" ~ 36" ( DN40 ~ DN900 )
    • *Pressure Rating: 150#/300#/600#/PN6/PN10/16/PN25/40/PN50/JIS 5K / JIS 10K

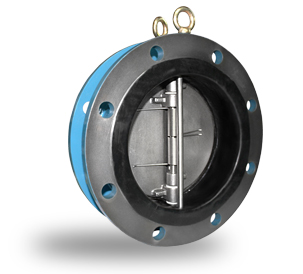

  • DVC-121
  • API594 Double-Flange Full-lining Type Dual Plate ( Flaps ) Check Valves.
  • Feature：
    • * Full-lining design for corrosive application.
    • * Size Range 1 1/2" ~ 36" ( DN40 ~ DN900 )
    • *Pressure Rating: 150#/300#/600#/PN6/PN10/16/PN25/40/PN50/JIS 5K / JIS 10K
