Spring-load check valve

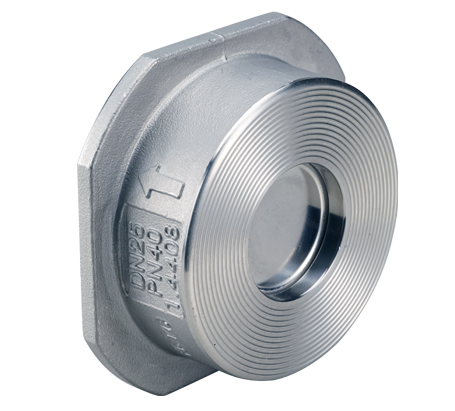

  • WC-140
  • Wafer Type Spring Check Valve.
  • Feature：
    • * Wafer Check Valve, Spring Type.
    • * Top-quality in stainless steel material.
    • * Short-delivery.
    • * Horizontal or Vertical Installation is available.
    • * Low Pressure Drop.
    • * Size Range 1/2" ~ 8" ( DN15 ~ DN200 )
    • * Working pressure : DN15 ~ DN100 - PN40 bar, DN125 ~ DN200 - PN25 bar.

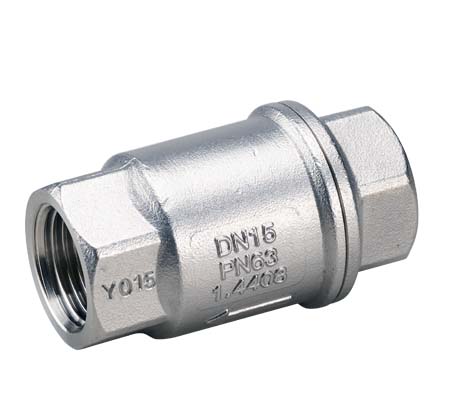

  • LV-210
  • Vertical spring check valve, 2-pc design.
  • Feature：
    • * Screw Check valve, spring type.
    • *Top quality instainless steel material
    • * Short-delivery
    • * Horizontal or Vertical installation is available.
    • * Size Range: 1/4" ~ 4" ( DN08 ~ DN100 )
    • * Working pressure :1000psi
    • * End Connections: BS 21 ( BSP )/BSPT/ISO 228-1/DIN 2999/ISO7-1Rp/B1.20.1 NPT

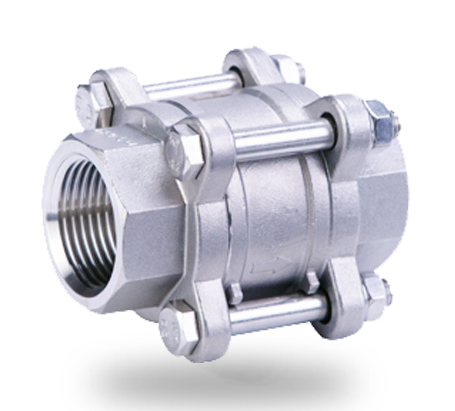

  • LV-310
  • Three Piece (Lift-Type) Spring Check Valves.
  • Feature：
    • *Screw Check Valve, Spring Type.
    • *In-line Replacement to swing-out-the caps and replaced the internal parts without disturbing alignment of pipeline.
    • *Top-quality in stainless steel material.
    • *Short-delivery.
    • *Horizontal or Vertical Installation is available.
    • *Low Pressure Drop.
    • *Size Range: 1/4" ~ 4" ( DN08 ~ DN100 )
    • * Working pressure :1/4" ~ 2" 1000psi ( PN63 bar ) ; 2-1/2" ~ 4" 800psi ( PN40 bar )
    • *End Connections: BS 21 ( BSP )/BSPT/ISO 228-1/DIN 2999/ISO7-1Rp/B1.20.1 NPT
